    Alloy Steel Slip On Flanges Alloy Steel Flange

    ASTM A182 F11 ANSI B16.5/B16.47 Alloy Steel Slip-On Flanges


    Product Information

    Alloy steel slip-on flanges are typically made from various alloy steel grades, such as ASTM A182 F5, F9, F11, F22, or F91. Alloy steel offers high strength, excellent corrosion resistance, and enhanced temperature resistance, making it suitable for applications in high-pressure and high-temperature environments.

    Alloy steel slip-on flanges can have a raised face or a flat face configuration. A raised face flange has a raised surface around the sealing area, which allows for easy installation and provides a secure and leak-free connection when mated with a gasket. Flat face flanges have a flat surface without any raised portion.


    Product NameASTM A182 F11 ANSI B16.5/B16.47 Alloy Steel Flanges
    Size Range1/2’ to 48”
    Pressure Class75 150, 300, 400, 600, 900, 1500, 2500,
    ThicknessSch10S to Sch160
    StandardsASME/ANSI B16.5/B16.47, JIS B2220
    TypeSlip - on Flange ( SO )
    DimensionsANSI B16.5, Custom Drawings
    CoatingAnti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent, Zinc Plated
    OriginChina
    ApplicationsOffshore, Oil Field, Shipbuilding, Water System, Nature Gas, Pipe Projects, Electric Power, etc.
    TestDirect-reading Spectrograph, Hydrostatic testing machine, X-ray detector, Ultrasonic flaw detector, Magnetic particle detector
    Test CertificatesRaw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

    Standards & Materials: ASTM A182 F11


    Chemical Composition of ASTM A182 F11 Alloy Flanges

    GradeC,maxMnSiP, maxS, maxCrMo
    ASTM A182 F110.1-0.20.3-0.80.5-1.00.0400.0401.0-1.50.44-0.65

    Mechanical Properties of ASTM A182 F11 Alloy Flanges

    GradeTensile Strength, min.(MPa)Yield Strength, min (MPa)Elongation in 2″, min (%)Reduction of Area, min (%)Brinell Hardness (HBW)
    ASTM A182 F114852752035143-207

    Flange Type: Slip On (SO)

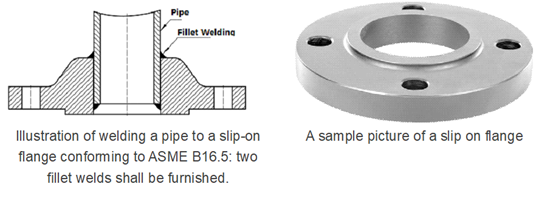

    Slip on flange also simplified as SO flange. SO flanges slip over pipes and are designed to bit slightly bigger on the inside than the pipe. They connect to the pipe through a fillet weld at the flange top and bottom. It is used to insert the pipe into the inner hole of flange, as the flange inner diameter is little bigger than the pipe’s outer diameter, pipe and flange could be connected by lap welding at the top and bottom of the flange.


    The slip on flange is shorter in length than a weld neck flange, and is used in areas where short tie-ins are necessary or space limitations necessitate its use. Generally, the life span of a slip-on flange connection is about one-third that of the weld neck flange. Despite of additional welding involved during installation, its lower initial cost makes the SO flange preferred over WN flanges by many users. It is generally used in non-corrosive, non-critical, moderate pressure services. Slip on flanges of Class 150 and Class 300 are most commonly seen in utility engineering.


    ASTM A182 Alloy Steel Flange Slip On High Strength F11 Sch10S 0

    Pressure-Temperature Ratings

    Both ASME B16.5 and ASME B16.47 has stipulated pressure-temperature ratings for ASTM A182 F5 steel, which are maximum allowable working gauge pressures in psi units at the temperature in degrees Fahrenheit. The data sheet is divided by Classes: ASME B16.5 flanges are available in Class 150, 300, 400, 600, 900, 1500, 2500; ASME B16.47 Series A are available in Classes 150, 300, 400, 600, 900; and ASME B16.47 Series B are available in Classes 75, 150, 300, 400, 600, 900.


    Temp.
    °F
    Class 75
    psi
    Class 150
    psi
    Class 300
    psi
    Class 400
    psi
    Class 600
    psi
    Class 900
    psi
    Class 1500
    psi
    Class 2500
    psi
    -20~10014529075010001500225037506250
    2001352607359801470221036806135
    3001152307009351400210034955830
    4001002006708901335200533455570
    500851706458601290194032305385
    600701406058051210181530255040
    650601255907851175176529404905
    700-1105707551135170528404730
    750-955307101065159526604430
    800-805106751015152525404230
    850-65485650975146024354060
    900-50375500745112018703115
    950-3527536555082513702285
    1000-202002654005959951655
    1050--1451902904307201200
    1100--95130190290480800
    1150--6080125185310515
    1200--354570105170285

    Manufacturing Process


    ASTM A182 Alloy Steel Flange Slip On High Strength F11 Sch10S 1
